MU-STIX-G輕巧型HDMI 48G圖像產生器
產品簡述
♦ 符合HDMI 2.1b, 8K/30 48Gbps (FRL)標準
♦ 支援720p, 1080p, 4K/120 fps, 8K/30 fps
♦ 支援Color Depths 8/10/12 bit
♦ 支援RGB & YCbCr
♦ 支援HDCP1.4 & 2.3
♦ 提供13種測試圖像; 包含PRBS, 可用於檢測誤碼率, 信號衰減及Timing問題
♦ USB Type-C供電
產品詳細介紹Product Introduction

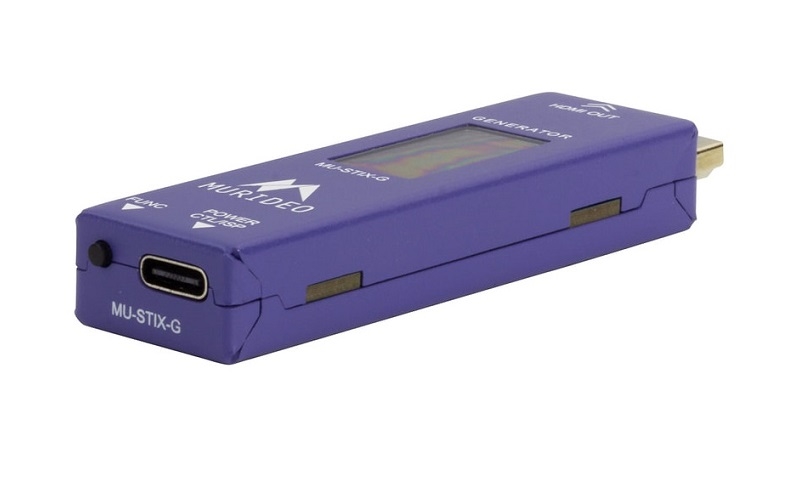

MU-STIX-G
STIX Test Ecosystem Signal Generator The MU-STIX-G is a revolutionary Murideo thumb drive-sized 8K HDMI pattern generator supporting HDMI 2.1 FRL signals up to 48 Gbps and legacy HDMI 2.0 TMDS signals up to 18 Gbps. The MU-STIX-G is ideal for rack room assembly testing or light-duty in-field pass/fail signal transmission verification. 13 different test patterns can be generated at resolution timings from 720p/60 fps up to 8K/30 fps, including 4K/120 fps.
Initially developed as a resource for AVPro Edge internal quality control, the STIX MU-STIX-G generator and MU-STIX-A analyzer Ecosystem were conceived to perform asymmetric testing methodology for dynamically transmitting, receiving, and logging test sources through 1,152 MXnet endpoint transmitters and receivers. Imagine pursuing this process with hundreds of Blu-ray machines or streaming devices and a staggering number of video displays… it is simply impossible. Having multiple pairs of the STIX duo on hand makes tedious, labor-intensive pre-deployment rack room testing easy and fast.
The MU-STIX-G’s mini OLED screen display shows the current outgoing video signal, including a thumbnail of the active test pattern, resolution and timing, bit depth, chroma, and HDCP Version. Powered by any standard USB power port, the MU-STIX-G can operate on the go around an installation site connected to a phone or tablet using a USB Type-C to Type-C cable. Its ultra-compact, stow-away form factor enables all field technicians to have cost-effective HDMI pattern generation available for versatile HDMI signal path verification for legacy HDMI system troubleshooting or new HDMI 2.1installations. FeatruesLOW-COST, FLEXIBLE OUTPUT SOURCE
Match pattern generation with standard output timings used by HDMI-based entertainment sources at a low cost and with flexible configuration. Toggle through settings instead of switching sources.
AVAILABLE SIGNAL TIMINGS
720p and 1080p, 4K/60 and 120 fps, and 8K/30 fps
SELECTABLE COLOR DEPTH
8-, 10-, and 12-bit color depth
SELECTABLE COLOR SPACE
RGB, 4:2:0, 4:2:2, and 4:4:4 color space options are available
ULTRA-COMPACT FORM FACTOR
The HDMI headshell-sized footprint enables easy connectivity in tight spaces after racks are built. It can also be conveniently stored with tools or in a computer bag for any timetroubleshooting.
INTEGRAL COMPONENT OF THE STIX ECOSYSTEM
The STIX Ecosystem allows for asymmetrical scalabilityfor MU-STIX-G deployment in end-to-end testing scenarios. Paired with the MU-STIX-A analyzer, system troubleshooting, and infrastructure performance confirmation can be easily accomplished before sources and displays are installed.
