Frontline X700^TM Wireless Protocol Analyzer

Teledyne LeCroy’s Frontline X700 Wireless Protocol Analyzer is the industry's most advanced one-box test solution for wireless product development. The X700 captures Bluetooth in 2.4/5/6 GHz frequency bands simultaneously so you can debug without missing packets. The unique Wi-Fi 7 tri-band feature allows capture of three Wi-Fi channels on any three bands for multi-link operation (MLO) testing. Supporting decodes for the latest Matter, Thread, Zigbee and wired technologies, the X700 delivers unparalleled capture performance in complex multitechnology environments.

Next Generation Bluetooth Validation

Simplify Next Generation Bluetooth Validation Across All Frequency Bands – The Frontline X700 makes next generation Bluetooth testing straightforward across every supported band. By extending analysis into the higher 5 GHz and 6 GHz ranges, it gives developers and QA teams the visibility they need to evaluate emerging Bluetooth features and new higher band use cases.

With full spectrum coverage across the 2.4 GHz ISM band and the 5/6 GHz UNII 1/3/4/5 bands, the X700 captures the entire 880 MHz of Bluetooth bandwidth at once—providing precise, time aligned insight into performance, latency, coexistence, and interoperability. Advanced RF metrics, synchronized correlation, and deep packet analysis deliver the clarity required to validate next generation Bluetooth capabilities and ensure reliable operation in increasingly complex RF environments.

Wi-Fi and Bluetooth Analysis

See and Solve Interference Faster – As Bluetooth moves into higher-frequency operation alongside Wi-Fi 7, the 5/6 GHz spectrum is becoming increasingly crowded. Support for Wi-Fi 7 with MLO (802.11be, 2×2 MU MIMO), Wi-Fi 6/6E (802.11ax, 2×2 MU MIMO), and all legacy Wi-Fi standards enables comprehensive coexistence analysis alongside time synchronized Bluetooth, giving engineers a unified view of frequency hopping, MLO behavior, and real-time traffic interactions—exposing coexistence issues that single-protocol tools routinely miss.

The built in Wi-Fi Scanner automatically configures channel and bandwidth settings for faster setup, while packet truncation options reduce Wi-Fi capture volume without impacting advanced analysis such as throughput, channel utilization, and coexistence testing. Together, these capabilities remove blind spots, accelerate root cause analysis, and deliver a unified understanding of system level behavior.

Multi Protocol Analysis

Eliminate Visibility Gaps in Multi Protocol Wireless Systems – Gain a complete, time aligned view of every interaction in today’s increasingly complex wireless environments. The X700 captures Bluetooth traffic simultaneously across the 2.4 GHz and 5/6 GHz bands—alongside Wi-Fi 7, 802.15.4, and multiple wired interfaces—to deliver true 360 degree visibility into multi protocol system behavior.

With support for capturing up to three Wi-Fi channels at once, engineers can easily follow roaming events, AP handoffs, and dynamic channel changes in real time. Live raw spectrum visualization across the 2.4, 5, and 6 GHz bands accelerates troubleshooting by quickly exposing RF conflicts, interference sources, and coexistence issues that degrade performance. By unifying RF, protocol, and behavioral insights into a single synchronized view, the X700 removes blind spots and enables faster, more accurate system level debugging and validation.

RF, Host, and Audio Analysis

Expose Hidden Issues Across RF, Host, and Audio Domains – Gain complete end-to-end visibility into every layer of your wireless system. Support for up to 24 logic channels—combined with simultaneous decoding of HCI over USB, SPI, and UART (H4/H5/BCSP/WCI-2), plus Audio I2S interfaces—lets you correlate RF activity with host controller traffic, firmware behavior, and audio signal paths in a single, unified workflow.

This cross-domain insight makes it easier to uncover timing issues, protocol violations, audio glitches, and integration defects that are otherwise impossible to isolate using RF analysis alone. Engineers can quickly pinpoint root causes, reduce debug cycles, and validate complex Bluetooth, audio, and multi-radio systems with far greater confidence and accuracy.

Challenging RF Environments

Eliminate Guesswork in Challenging RF Environments – Achieve consistent, high quality captures even in the most demanding RF conditions. Manual and automatic RF Gain Control work together to optimize signal quality whether you’re operating in noisy, interference heavy labs or highly controlled shielded chambers. This adaptability removes guesswork, reduces time spent fine tuning RF settings, and ensures accurate visibility across Bluetooth, Wi-Fi, and 802.15.4 traffic. Engineers can trust the analyzer to maintain stable performance, preserve critical signal details, and deliver reliable results across a wide range of real world environments—ideal for device bring up, coexistence testing, and complex multi radio validation.

Accelerate Automated Testing

Accelerate Automated Testing with Full API Control – Robust, full-stack API control for configuration, capture, analysis, and export—reduces manual effort and accelerates automated workflows. Teams can integrate seamlessly with CI systems, scale large regression suites, and ensure consistent, repeatable validation across Bluetooth, Wi-Fi, and 802.15.4 test scenarios. Automation delivers faster time to results, improved reliability through deterministic, script-driven processing, and higher overall test coverage with minimal engineering overhead. The solution is designed for scalable lab environments—including multi-DUT testbeds and high-volume regression pipelines—and supports flexible scripting in Python and other common languages, making it easy to integrate into Jenkins, GitLab CI, Azure DevOps, or custom automation frameworks.

Wireless Protocol Suite

Teledyne LeCroy’s Wireless Protocol Suite combines Frontline’s decades of protocol analysis experience and up-to-the moment spec support with a streamlined interface, bringing all analysis tools into a single dockable framework that can be customized to your own preferred way of working and evaluating information. When paired with Teledyne LeCroy’s uniquely portable and configurable family of wireless protocol analyzers, the Wireless Protocol Suite delivers a world class software experience to anyone working with technologies that utilize the 2.4GHz ISM band.

The Industry's Wireless Development Powerhouse
The Frontline X700 is a cutting-edge wireless tool designed to meet world's evolving demands and rapid innovation in Bluetooth, Wi-Fi and other wireless technologies.  The X700 captures the full spectrum of wireless communications, including Bluetooth in 2.4 GHz and emerging higher frequency bands, Wi-Fi 7, and 802.15.4-based technologies, giving engineers complete visibility into the complex RF environments. With precise capture and decoding of Bluetooth Classic, Bluetooth Low Energy, and Bluetooth in Higher Frequency Bands, developers gain the clarity needed to troubleshoot pairing issues, optimize throughput, and validate new features with confidence. Real‑time insights into packet timing, channel utilization, and interference sources help teams quickly isolate problems that would otherwise remain hidden. The Frontline X700 comes equipped with trusted proprietary enhanced Excursion Mode with improved capture duration, which allows the user to capture everything in the air at the push of a button, without any PC attached. The integrated Bluetooth Audio Expert System is the first and only analysis tool on the market to combine audio analysis with Bluetooth protocol analysis, allowing developers to quickly pinpoint the root cause of a wide array of Bluetooth protocol-related audio problems in various applications, including latest Bluetooth LE Audio and Bluetooth Auracast™.

Intuitive, Industry‑Leading Software to Accelerate

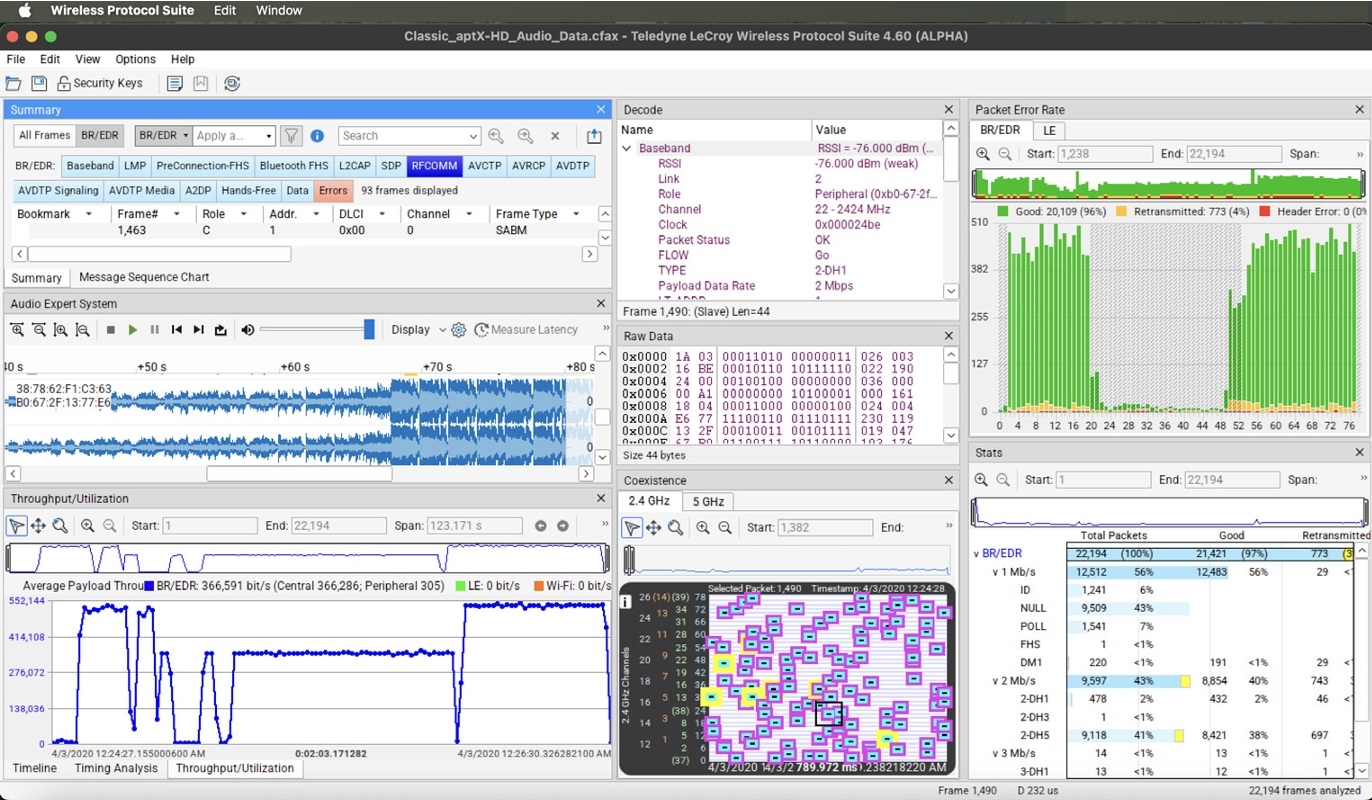

Your Tests on Every Operating System Teledyne LeCroy’s Wireless Protocol Suite brings together the full power and maturity of Frontline’s industry-leading protocol analysis software in a modern, streamlined interface. All analysis tools are unified within a customizable docking framework that adapts to your preferred workflow—now with support for Windows, macOS, and Linux environments. Every essential view is at your fingertips: timing analysis, RF spectrum coexistence data, packet error-rate statistics, throughput graphs, timelines, and a wide range of synchronized, dockable windows that reveal the inner workings of today’s complex wireless technologies. These capabilities are backed by Teledyne LeCroy’s decades of expertise in wireless protocol decoding, embodied in the trusted Frontline family of analyzers. Accurate, repeatable data capture is vital when validating the performance and reliability of wireless devices. The Wireless Protocol Suite (WPS) Automation API ensures consistent, reproducible results with full process documentation—while significantly reducing the need for manual intervention.



Features

• One-Box solution for simultaneous timecorrelated capture of Bluetooth 2.4 and 5/6 GHz, 802.11 be, 802.15.4 and wired technologies
• 880MHz simultaneous Bluetooth capture in the 2.4 GHz ISM band, along with all UNII-1/3/4/5 bands without any user intervention
• Two (2) independent Bluetooth radios for superior capture performance in 2.4/5/6 GHzLogic Analysis
• Unrivalled Wi-Fi coverage:
  • Wi-Fi 7 with MLO (802.11be 2x2 MU-MIMO)
  • Wi-Fi 6/6E (802.11ax 2x2 MU-MIMO)
  • Wi-Fi 1-5 (802.11a/b/g/n/ac with 2x2 MIMO)
• Capture three (3) Wi-Fi channels simultaneously to follow connections over multiple access points or multiple channels
• Logic Analysis via highly user-configurable PODs supports up to 24-channels via three 8-channel PODs
• Capture and decode of three (3) HCI USB, HCI SPI and HCI UART (H4/H5/BCSP and WCI-2), Audio I2S using three PODs
• Faster root cause analysis of audio issues with the integrated Bluetooth Audio Expert System
• Live or post-capture decryption and analysis
• Raw RF spectrum view in 2.4, 5 and 6 GHz helps identify potential RF conflicts
• Excursion Mode enables one-button, PC-free captures with improved capture duration
• Manual and automatic gain controls for easy adaptations to every test environment
• All released Bluetooth profiles and protocols supported along with early access for prereleased features
• Easy integration into automation setup using extensive APIs
• Wireless Protocol Suite software now supported on all major OS – Windows, macOS and Linux with lifetime software updates

• Host Connection
  • USB 2.0, USB 3.1 Gen 1
  • Ethernet (10, 100, 1000 Mbps)
• Excursion Mode Memory: 128 GB
• Power AC: 110V/230V
• Weight and Dimensions: 5.18 lbs (2.35 Kg)  7.8 x 8.9 x 3.8 in (198 x 227 x 96 mm)
• Operating Frequency of SDR
  • BT/802.15.4 ISM 2395-2485 MHz (80MHz)
  • BT U-NII-1 5150-5250 MHz (100MHz)
  • BT U-NII-3 5725-5850 MHz (125MHz)
  • BT U-NII-4 5850-5925 MHz (75MHz)
  • BT U-NII-5 5925-6425 MHz (500MHz)
• Operating Frequency of Wi‑Fi
  • 802.11 b/g/n 2.4GHz (20/40MHz)
  • 802.11 a/n/ac/ax 5GHz (20/40/80/160MHz)
  • 802.11 ax/be 6GHz (20/40/80/160/320MHz)
• Sensitivity Range: -90dBm to +10 dBm
• Supported Demodulators: BR/EDR and LE (GFSK, π/4DQPSK, 8DPSK) 802.15.4 (OQPSK); Designed for Emerging Modulation Schemes
• Logic Analyzer Timestamp Resolution: 5ns
• Clock Accuracy: ±7 ppm over 0 ˚C to 70 ˚C
• Operating Temperature: 0° to +35°C (32° to 95°F)
• Humidity Operating: 10% to 90% RH (noncondensing)
• OS Supported Windows 10, 11/macOS/Linux
